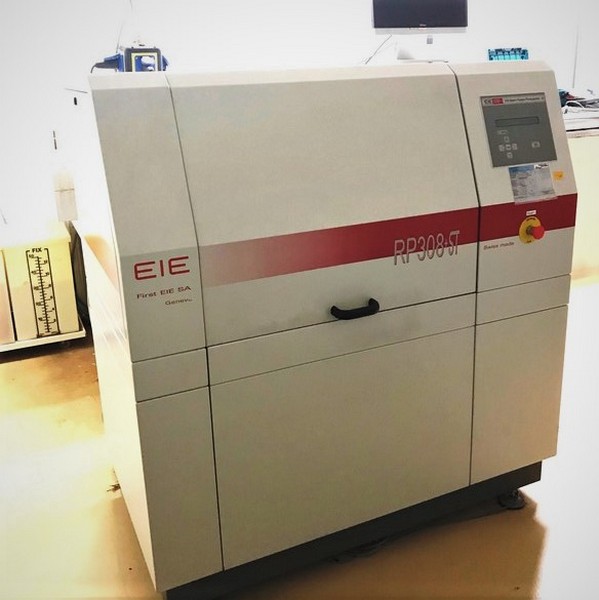

EIE RP 308 ST

Machine ID: 80094
https://www.pcbequipment.com/web/image/product.template/3681/image_1920?unique=e892d2f

Film plotter w/ film conveyor bridge, max. resolution of 8.000 dpi, max. exposure area: 914 x 660 mm, large range of compatible film lengths from 18'' up to 36'', compatible film widths: everywhere between: 300 mm (12'') & 660 mm (26''), film thickness 0.18 mm, film holding by vacuum, variable drum spreed: up to 100 rpm, exposure device with 256 beam STH head w/ light intensity equalization. overall accuracy: approx. 12 Âµm, repeatability: 3 µm. Overall machine dimensions (L x W x H): 1330 x 750 x 1400 mm. Electrical connections: 220 VAC - 50/60 Hz - 4A. Year: 2004Please see attached data sheet for more detailed information.

Not Available For Sale

  • Brand
  • Model
  • Year of Manufacturing
  • Dimensions

This combination does not exist.

Brand: EIE
Model: RP 308 ST
Year of Manufacturing: 2004
Dimensions: 1330mm x 750mm x 1400mm
